Kubernetes Under the Hood: How It Actually Works When You Deploy

Kubernetes Under the Hood: How It Actually Works When You Deploy

👤 Sabbir Hossain Shuvo • 📅 August 10, 2026 • ⏱️ 10 min read

"A battle-tested, zero-fluff engineering guide on Kubernetes internals control plane API state machines, etcd Raft consensus, kubelet CRI/gRPC calls, and Linux cgroups, namespaces & CNI/eBPF networking."

If you ask most developers what Kubernetes is, they’ll tell you it’s a tool that runs containers across a cluster using kubectl apply -f deployment.yaml.

That’s fine for high-level usage. But as a Senior DevOps / Infrastructure Engineer, when a production cluster experiences subtle IPVS connection drops, etcd disk commit stalls during high churn, or Pods getting stuck in ContainerCreating state, abstract definitions fall apart.

In this deep dive, we’re skipping generic marketing summaries. We will dissect the Kubernetes architecture layer by layer, tracing exact Linux primitives, gRPC calls, control loops, and kernel networking hooks under the hood.

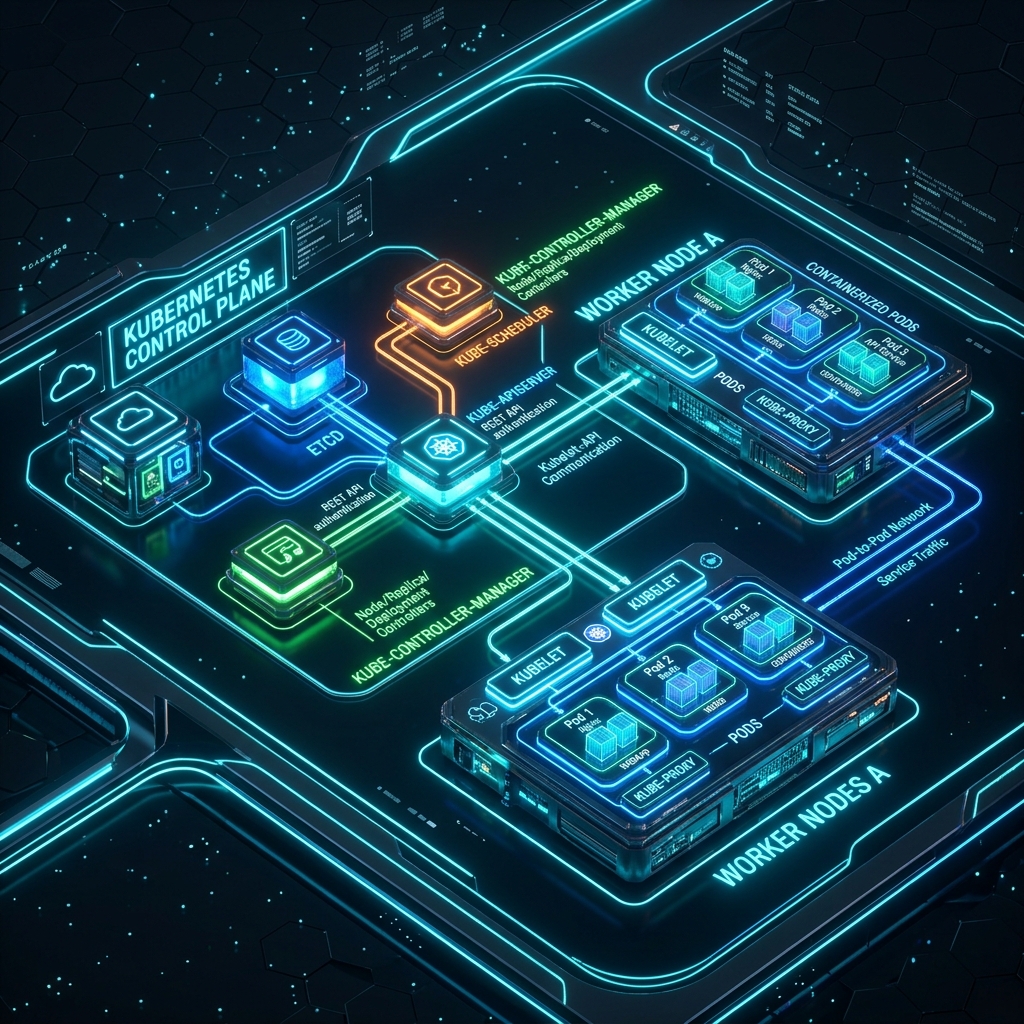

1. High-Level Cluster Architecture

A Kubernetes cluster is fundamentally a distributed state machine designed to continuously reconcile observed cluster state with declared desired state.

+-----------------------------------------------------------------------------------+
|                            CONTROL PLANE (MASTER NODE)                            |
|                                                                                   |
|  +--------------------+       +--------------------+       +-------------------+  |
|  |   kube-apiserver   | <---> |        etcd        | <---> |  kube-scheduler   |  |
|  +--------------------+       +--------------------+       +-------------------+  |
|            ^                                                         |            |
|            |                                                         v            |
|            +-------------------------------------------+-----------------------+  |
|                                                        | kube-controller-manager|  |
|                                                        +-----------------------+  |
+-----------------------------------------------------------------------------------+
                                          |
                      TLS HTTP/2 (Protobuf / JSON Watch Streams)
                                          |
                                          v
+-----------------------------------------------------------------------------------+
|                                   WORKER NODE                                     |
|                                                                                   |
|  +-----------------------+     +------------------------+     +----------------+  |
|  |        kubelet        |     |       kube-proxy       |     | containerd     |  |
|  | (CRI / gRPC Listener) |     |  (iptables/IPVS/eBPF)  |     | (runc / OCI)   |  |
|  +-----------------------+     +------------------------+     +----------------+  |
|            |                                                          |           |
|            +------------------------> Pod Sandbox <-------------------+           |
+-----------------------------------------------------------------------------------+

The system is strictly divided into two zones:

  • Control Plane: Maintains global cluster state, enforces security, and executes scheduling and controller loops.
  • Worker Nodes: Hosts daemons (kubelet, kube-proxy, CNI/CRI runtimes) that isolate and manage container processes.

2. Control Plane Internals: The Engine Room

A. kube-apiserver — The Guarded Gateway

The API Server is the only component allowed to talk directly to etcd. No other component reads from or writes to the database directly.

When kubectl sends a request to kube-apiserver, it passes through a deterministic pipeline:

Request ---> [Authentication] ---> [Authorization (RBAC)] ---> [Mutating Webhooks] ---> [Object Validation] ---> [Validating Webhooks] ---> [etcd Persistence]
  1. Authentication (AuthN): Extracts client identity using TLS X.509 client certs, Bearer tokens, or OIDC identity tokens.
  2. Authorization (AuthZ): Evaluates RBAC rules (ClusterRole, RoleBinding) to answer: Does user X have permission to perform verb create on resource deployments in namespace prod?
  3. Mutating Admission Controllers: Intercepts and modifies payloads (e.g., injecting sidecar containers or applying default storage classes).
  4. Schema Validation: Verifies structural adherence to OpenAPI definitions.
  5. Validating Admission Controllers: Performs final policy checks (e.g., block root user containers).
  6. ETCD Persistence: Serializes the object into Protobuf/JSON format and commits it to etcd.

B. etcd — Distributed State & Concurrency Control

etcd is a strongly consistent, distributed key-value store using the Raft consensus protocol.

Key operational mechanics you must know:

  • Optimistic Concurrency Control (MVCC): etcd attaches a strictly increasing resourceVersion to every record. If two controllers update the same object concurrently, the transaction with the stale resourceVersion fails with HTTP 409 Conflict. The failed client must re-read the object and re-apply its patch.
  • Watch Streams: Instead of controllers polling the API server every few seconds, clients maintain persistent HTTP/2 gRPC watch streams. When etcd modifies a key prefix, kube-apiserver streams ADDED, MODIFIED, or DELETED events instantly to listeners.

C. kube-scheduler — The Placement Engine

The scheduler’s sole job is to take Pods that have spec.nodeName == "" and assign them to a suitable node. It operates in two phases:

  1. Filtering Phase (Predicates): Filters out nodes incapable of hosting the Pod.
    • PodFitsResources: Checks if node CPU/memory capacity can satisfy request limits.
    • NodePorts: Verifies host ports aren’t already bound.
    • NodeSelectors / TaintsAndTolerations: Checks label matches and taints.
  2. Scoring Phase (Priorities): Ranks the surviving nodes from 0 to 100.
    • ImageLocality: Gives higher scores to nodes that already have the container image pulled locally.
    • NodeResourcesBalancedAllocation: Scores nodes higher if placing the Pod leaves a balanced ratio of CPU to memory usage.

Once a winner node is selected, kube-scheduler sends a Binding object back to kube-apiserver to populate pod.spec.nodeName.

D. kube-controller-manager — The Reconciliation Engine

kube-controller-manager runs dozens of decoupled control loops inside a single binary.

Each controller executes an asynchronous Reconciliation Loop:

           +---------------------------------------+
           |                                       |
           v                                       |
  [Get Desired State]                     [Observe Actual State]
(from kube-apiserver)                   (from cluster events)
           |                                       |
           +-------------------+-------------------+
                               |
                               v
                     [Diff Desired vs Actual]
                               |
                   +-----------+-----------+
                   |                       |
            (States Match)        (States Differ)
                   |                       |
                   v                       v
               [Do Nothing]      [Execute Repair Action]
                                 (Create/Delete Pods, etc)

For example:

  • DeploymentController: Watches Deployments. When a Deployment update occurs, it creates a new ReplicaSet.
  • ReplicaSetController: Watches ReplicaSets and Pods. If target replica count is 3 but only 2 Pods exist, it submits a request to kube-apiserver to spawn 1 new Pod.

3. Worker Node Mechanics: From API Object to Running Process

                                  WORKER NODE
 ┌─────────────────────────────────────────────────────────────────────────────┐
 │                                                                             │
 │  kubelet  ──(gRPC over UDS)──> containerd ──(OCI CLI)──> containerd-shim    │
 │                                                              │              │
 │                                                              v              │
 │                                                            runc             │
 │                                                              │              │
 │                                                              v              │
 │                                                      [Container Process]    │
 └─────────────────────────────────────────────────────────────────────────────┘

A. kubelet — The Node Supervisor

kubelet runs natively on the node OS (outside containers). It subscribes to kube-apiserver for PodSpecs assigned to its specific node name.

When a new Pod is scheduled to its node:

  1. kubelet parses the PodSpec.
  2. It executes CRI (Container Runtime Interface) gRPC calls to the local runtime socket (e.g., /run/containerd/containerd.sock).
  3. It executes CNI (Container Network Interface) calls to set up network namespaces and IP routing.
  4. It periodically runs Liveness, Readiness, and Startup probes.

B. CRI, containerd, containerd-shim, and runc

Under the hood, kubelet does not manage low-level container namespaces or cgroups directly. It delegates to container runtimes using OCI standards:

  1. kubelet -> containerd (CRI Call): kubelet sends RunPodSandbox over gRPC to set up shared Pod namespaces (Network, IPC, UTS).
  2. containerd -> containerd-shim: containerd creates a lightweight daemon called containerd-shim for each container. This process keeps standard file descriptors (stdout/stderr) open even if containerd restarts.
  3. containerd-shim -> runc: containerd-shim executes runc, the OCI reference implementation.
  4. Kernel Namespace & Cgroup Creation:
    • runc configures Linux namespaces (pid, net, mnt, ipc, uts, user) for isolation.
    • runc sets cgroups (cpu.max, memory.max) in /sys/fs/cgroup/ to enforce resource quotas.
  5. runc launches the container main process and exits. containerd-shim remains to monitor the running container process.

4. Cluster Networking: CNI & kube-proxy

A. The Kubernetes Network Model

Kubernetes mandates three core networking invariants:

  1. Every Pod gets its own unique IP address.
  2. Pods on any node can communicate with Pods on all other nodes without NAT.
  3. Agents on a node (like kubelet) can communicate with all Pods on that node.

B. CNI (Container Network Interface) in Action

When kubelet creates a Pod sandbox, it invokes the configured CNI plugin (e.g., Calico, Flannel, Cilium):

  1. veth pair creation: CNI creates a virtual Ethernet pair (veth0 inside the Pod namespace and vethXXXX in the host root namespace).
  2. Bridge / Route Attachment: CNI connects vethXXXX to a host bridge (cni0) or installs host routing table entries.
  3. IP Allocation (IPAM): Assigns a free IP address from the node’s allocated subnet (e.g., 10.244.1.0/24).

C. kube-proxy & Service Traffic Routing

Services provide stable VIPs (Virtual IPs) for pods that frequently die and get recreated. kube-proxy implements Service VIP routing using one of three mechanisms:

1. iptables Mode (Legacy Standard)

kube-proxy installs netfilter rules into Linux iptables. When traffic hits a Service VIP:

  • PREROUTING rules intercept the packet.
  • statistic --mode random randomly picks one of the healthy backend Pod IPs.
  • DNAT (Destination Network Address Translation) rewrites the destination IP from Service VIP to target Pod IP.

Drawback: Scalability issues. iptables rules are evaluated sequentially ($O(N)$ lookup complexity). A cluster with 20,000 services generates hundreds of thousands of rules, causing CPU spikes during updates.

2. IPVS Mode (High Scale)

kube-proxy uses Linux IPVS (IP Virtual Server) kernel module. IPVS uses hash tables ($O(1)$ lookup complexity), maintaining high performance even with 100,000+ services.

3. eBPF Mode (Modern / Cilium)

Modern networking plugins bypass iptables and kube-proxy entirely using eBPF (Extended Berkeley Packet Filter). Custom eBPF programs attached to Linux socket filters directly route packets at the kernel network interface level, eliminating netfilter stack overhead.

5. End-to-End Walkthrough: What Happens During kubectl apply -f deployment.yaml

Let’s trace the complete life-cycle step-by-step:

[User] ──(1. kubectl apply)──> [kube-apiserver] ──(2. Save State)──> [etcd]
                                     │
                                     ├─(3. Watch Event)──> [DeploymentController]
                                     │                          │ (Creates ReplicaSet)
                                     │                          v
                                     ├<─────────────────────────┘
                                     │
                                     ├─(4. Watch Event)──> [ReplicaSetController]
                                     │                          │ (Creates Pods: nodeName="")
                                     │                          v
                                     ├<─────────────────────────┘
                                     │
                                     ├─(5. Watch Event)──> [kube-scheduler]
                                     │                          │ (Filters & Scores Nodes)
                                     │                          v
                                     ├<──(6. Bind to Node-A)────┘
                                     │
                                     └─(7. Watch Event)──> [kubelet (Node-A)]
                                                                │
                                                                ├─(8. CNI)──> Set up veth & IP
                                                                └─(9. CRI)──> containerd -> runc
                                                                                   │
                                                                                   v
                                                                        [Container Running]
  1. kubectl parses your YAML, converts it to JSON, and sends an HTTP POST request to kube-apiserver.
  2. kube-apiserver authenticates, checks RBAC permissions, runs admission webhooks, validates schema, and writes the Deployment object into etcd.
  3. DeploymentController receives an ADDED event via its watch stream, generates a ReplicaSet spec, and POSTs it back to kube-apiserver.
  4. ReplicaSetController receives the ReplicaSet event, sees that 0/3 pods exist, and POSTs 3 unassigned Pod definitions (spec.nodeName == "") to kube-apiserver.
  5. kube-scheduler picks up the pending Pods from its watch stream, filters and scores all cluster nodes, selects Node-A, and submits a Binding object updating pod.spec.nodeName = "Node-A".
  6. kubelet on Node-A receives the MODIFIED Pod event matching its node name.
  7. kubelet invokes CNI to set up networking (eth0, IPAM allocation).
  8. kubelet sends RunPodSandbox and CreateContainer gRPC requests to containerd.
  9. containerd spawns containerd-shim, which invokes runc to create Linux namespaces, set cgroups limits, and start the container process.
  10. kubelet reports status back to kube-apiserver, marking the Pod as Running.

6. Summary Reference Architecture

ComponentLayer / ScopeMain Subsystem / PrimitivesKey Communication Protocol
kube-apiserverControl PlaneAuthN, AuthZ, Admission Control, Schema ValidationHTTPS REST / Protobuf / HTTP/2
etcdControl PlaneRaft Consensus, MVCC, Watch APIgRPC over TLS
kube-schedulerControl PlanePredicates (Filtering) & Priorities (Scoring)HTTP/2 Watch Stream
kube-controller-managerControl PlaneReconciliation Loops (Deployment, RS, Node)HTTP/2 Watch Stream
kubeletWorker NodePod Lifecycle Manager, Health CheckergRPC (CRI) / Netlink (CNI)
containerd / runcWorker NodeOCI Runtime, Linux namespaces, cgroupsUnix Domain Sockets / System Calls
kube-proxyWorker NodeService VIP load balancerLinux iptables / IPVS / eBPF

Conclusion

Kubernetes is not magic—it’s a masterclass in distributed systems engineering. By combining declarative state management, watch-based event loops, modular runtime interfaces (CRI/CNI), and core Linux kernel isolation primitives (namespaces/cgroups), it builds a resilient engine capable of running global cloud infrastructure seamlessly.
